    Optical Fiber Ceramic Ferrule Ø2.5mm 10.5mm Long 200μm Core Size with Flange and Fiber Jumper Patch Cable

    Ask Lasest Price
    Brand Name : AIMLASER
    Model Number : AMCF-200-0.37-2.5-5mm-W
    Payment Terms : T/T,Western Union,PayPal
    Supply Ability : 1000pcs/month
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    Optical Fiber Ceramic Ferrule Ø2.5mm 10.5mm Long 200μm Core Size with Flange and Fiber Jumper Patch Cable

    Optical Fiber Ceramic Ferrule Ø2.5mm 10.5mm Long 200μm Core Size with Flange and Fiber Jumper Patch Cable


    Product Description


    AIMLASER offers precision-engineered optical fiber ceramic ferrules for advanced optogenetics, neuroscience, and neural interface research. These components are also suitable for use in fiber optic sensing and communication systems where high performance and biocompatibility are essential.


    Each probe integrates high-purity dual-clad quartz fiber with a durable ceramic ferrule to achieve excellent optical transmission, reduced insertion loss, and minimal back reflection. The ferrule surface is treated with a biocompatible nanocoating to minimize immune response and inflammation during in vivo studies, making it ideal for chronic implantation. The body features a functional groove for easy alignment and fixation in experimental setups, while optional angled fiber tips (30°, 45°, 60°) allow for directional light delivery tailored to specific neural targets.


    Available in a range of core diameters (100μm to 400μm) and ferrule sizes (Ø1.25mm and Ø2.5mm), with white or black ceramic tip options, these probes are fully customizable in length with high dimensional accuracy. The polished fiber endface ensures tight beam focus, making it a reliable and effective tool for precise light-based stimulation and neural signal acquisition in both research and applied settings.

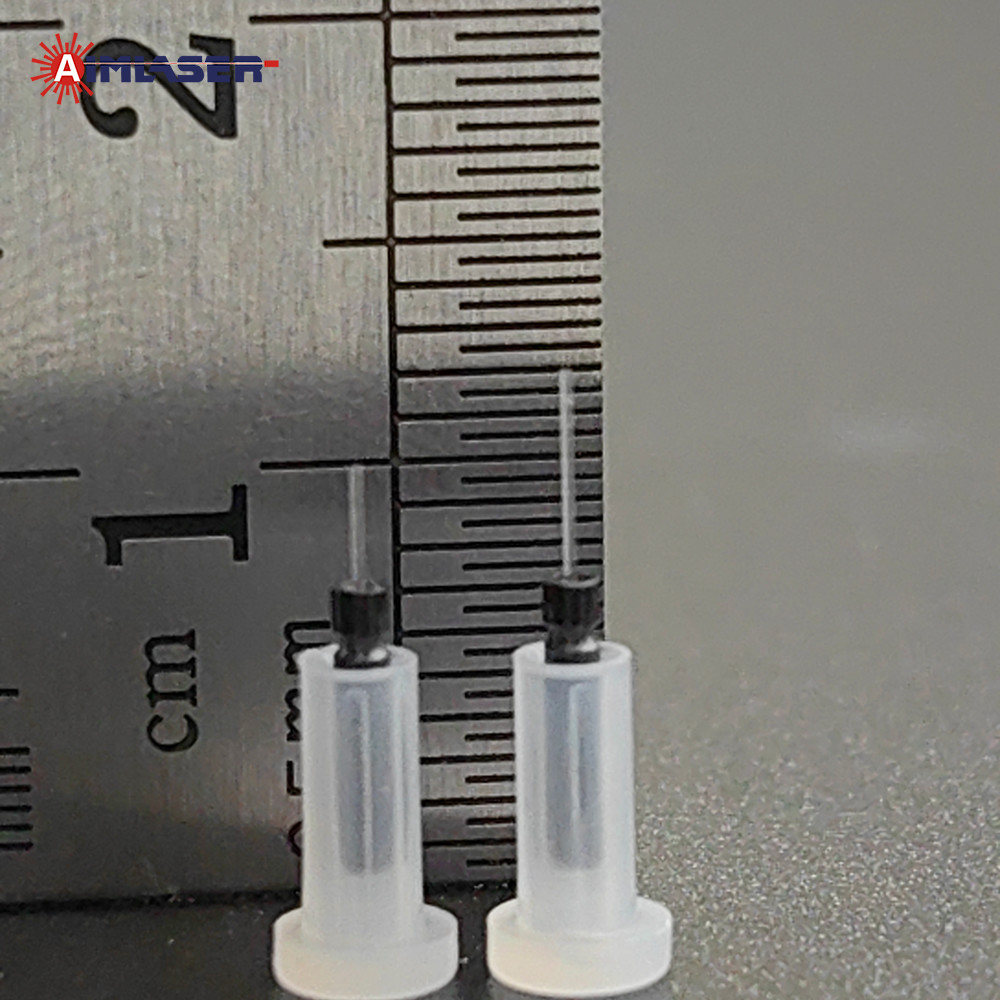

    Optical Fiber Ceramic Ferrule Optical Fiber Ceramic Ferrule

    Specifications


    ITEMSSPECIFICATIONS
    Product NameFiber Ceramic Ferrules Probes
    Fiber Core Diameter100μm, 200μm, 300μm, 400μm
    NA0.22, 0.37, 0.5
    Ferrule Outer DiametersØ1.5mm(L6.4mm), Ø2.5mm(L10.5mm)
    Fiber Length1-20mm (Custom)
    Luminousness≥85%
    ColorWhite, Black

    Features


    ● Dual-clad quartz fiber for low loss and high optical clarity
    ● Biocompatible nanocoating reduces immune response and inflammation
    ● Customizable core diameters, ferrule sizes, angles, and fiber lengths
    ● Precision-polished endface for excellent beam focus
    ● Grooved ceramic ferrule for easy and stable fixation
    ● Low autofluorescence for sensitive optical and neural measurements


    Applications


    The Optical Fiber Ceramic Ferrules are used in:


    The Optical Fiber Ceramic Ferrules are used in:

    Optogenetic stimulation and inhibition of targeted neurons

    Neural signal collection and transmission in brain research

    Chronic implantation studies in animal models

    Development of brain-machine and neural interface systems

    High-precision light delivery in fiber optic communication and sensing

    Experimental setups requiring stable, low-loss fiber alignment


    Trade Terms


    1) Payment: T/T, PayPal, Western Union, etc.

    2) Shipment: FedEx, DHL, UPS etc.

    3) Delivery Time: 5 - 20 days.

    4) Shipment Terms: FOB Xi'an China


    Why Choose Us


    A. Over 20 years of laser experience.

    B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.

    C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

    D. Strictly following ISO9001:2008 quality system.

    E. Product conforms to FDA, IEC and GB standards.

    F. Strong design and production capabilities, partners of famous brands.
