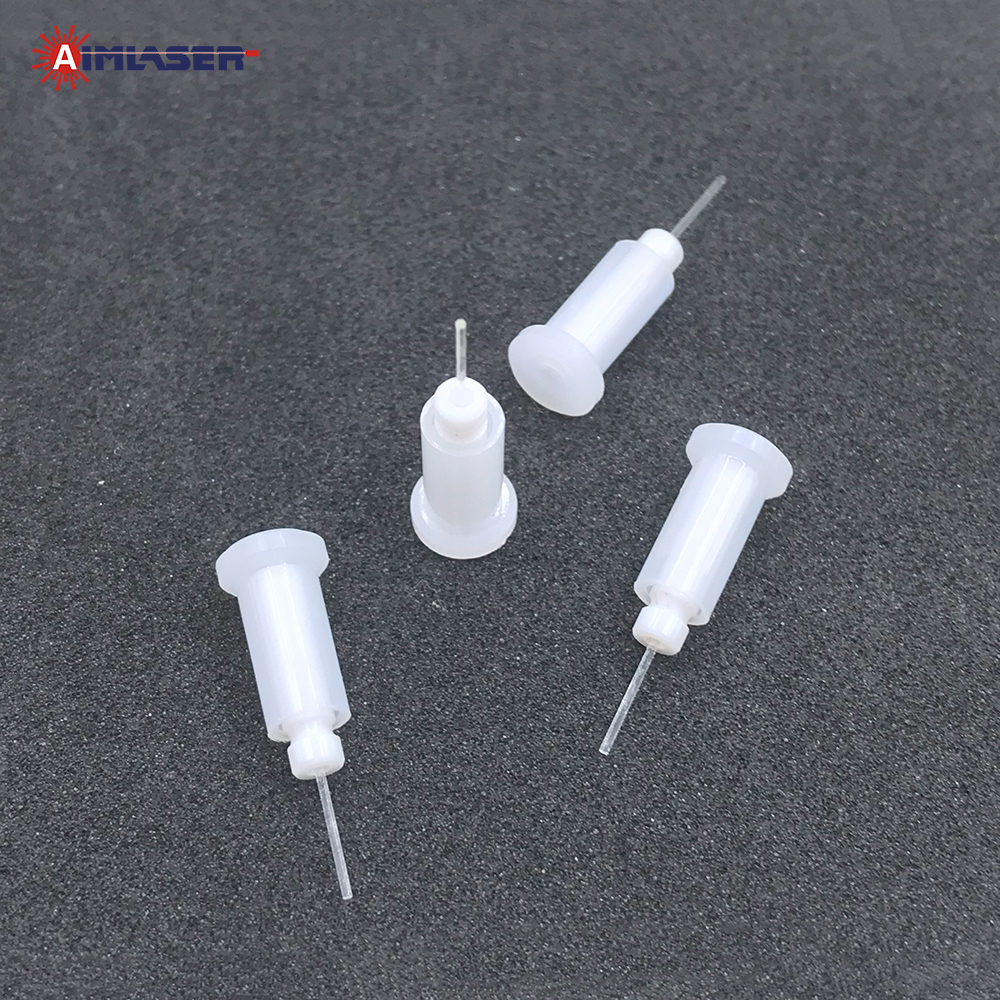

Fiber Ceramic Ferrules φ1.25mm 200μm Core Diameter Insert Optic Pin for Neuroscience and Optogenetics Research

Product Description

AIMLASER provides ceramic ferrule fiber optic assemblies primarily used in cutting-edge applications such as neuroscience, optogenetics, and neural stimulation, as well as in fiber optic communication systems.

Constructed with high-transmission dual-clad quartz fiber and premium ceramic materials, these assemblies minimize light leakage and back reflection while ensuring efficient light delivery. The optic ferrule pin is coated with a biocompatible nanolayer to reduce immune response and inflammation, making it suitable for long-term implantation. A unique grooved design allows for secure fixation in animal experiments, and optional angled tips (30°, 45°, 60°) accommodate various optical stimulation needs.

Our fiber ceramic ferrule probes are available with core diameters of 100μm, 200μm, 300μm, or 400μm, and ferrule outer diameters of 1.25mm or 2.5mm, the product comes in both white and black ceramic tip options. Fiber length is custom-tailored with high precision, and the polished endface provides excellent beam focusing—making the insert needle an ideal tool for precise neural pathway stimulation and signal acquisition

​

Specifications

Features

● Dual-clad quartz fiber for low loss and high optical clarity
● Biocompatible nanocoating reduces immune response and inflammation
● Customizable core diameters, ferrule sizes, angles, and fiber lengths
● Precision-polished endface for excellent beam focus
● Grooved ceramic ferrule for easy and stable fixation
● Low autofluorescence for sensitive optical and neural measurements

Applications

The Fiber Ceramic Ferrules are used in:

● Targeted neural stimulation in optogenetics;
● Signal transmission and collection in neuroscience research;
● Optical control in behavioral studies with animal models;
● Development and validation of implantable neural interfaces;
● Precision light delivery and fiber-guided positioning.
